2T Road-Rail Vehicle
Brief Introduction/Functions The 2T multi-purpose operating vehicle has the main functions of pruning and digging, used for temporary maintenance work such as freezing damage treatment, digging, and chopping. Product Parameters/Key Technologies Engine power: 13kW Working height: 3.7m Running speed with crawler belt: 4km/h Application Cases Main application: railway bureaus, engineering bureaus, and industrial and mining enterprises. |
|

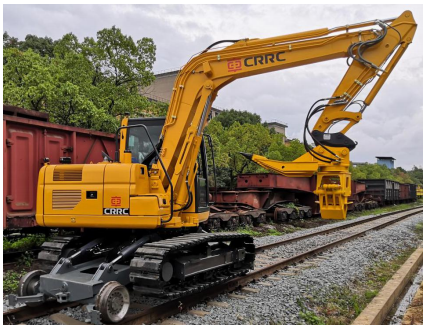

| 8T Road-RailVehicle Brief Introduction/Functions The 8t multi-purpose operating vehicle is based on the deeply customized 8t excavator platform with track self-traveling function, mainly focusing on sleeper changing. It is mainly used for batch sleeper changing during centralized repair, and can also expand a variety of operating equipment. Product Parameters/Key Technologies Engine power: 45kW Working height: 3.7m (adjustable) Running speed on rail: 20km/h Running speed with crawler belt: 4.2km/h Sleeper replacement efficiency: 60s/piece Equipped with sector and slewing limiterEquipped with omni-directional radar and video surveillanceEquipped with emergency power systemEquipped with one-click remote emergency stop function Application Cases Main application: railway bureaus, engineering bureaus, and industrial and mining enterprises. |
|
| 15T Road-Rail Vehicle Brief Introduction/Functions The 15t multi-purpose operating vehicle is based on the deeply customized 15t excavator platform, which adopts a triple-section boom to ensure height limit in a wider operating range. It has the function of rail self-traveling, mainly focusing on multi-purpose operation. It can realize switch cleaning, ballast tamping, tree pruning, and line shaping. Product Parameters/Key Technologies Engine power: 93kW Working height: 3.7m (adjustable) Running speed on rail: 20km/h Running speed with crawler belt: 5km/h Equipped with sector and slewing limiterEquipped with omni-directional radar and video surveillanceEquipped with emergency power systemEquipped with one click remote emergency stop function Application Cases Main application: railway bureaus, engineering bureaus, and industrial and mining enterprises. |
|
