Round Wire Water-Cooled Motor tDriver-MD3014
Brief Introduction/Functions Suitable for high-temperature environment and variable frequency speed control system. It has characteristics of wide speed regulation range, stable operation, high reliability, high operation efficiency, and novel and beautiful appearance design. Product Parameters/Key Technologies tDriver MD3014 motor: Bus voltage (DCV): 230~410 Peak power (kW): 120 Peak torque (Nm): 245 Maximum current (A): 400 Maximum speed (r/min): 12000 Outer diameter of stator (mm): 230 Application Cases The product has been applied to projects of FAW, Changan, Hezhong, GAC, and SAIC General Motors.
|
|
Round Wire Oil-Cooled Motor tDriver-X2L-2
Brief Introduction/Functions High power density and high torque density Product Parameters/Key Technologies tDriver-X2L-2 motor: Bus voltage (DCV): 260~487 Peak power (kW): 190 Peak torque (Nm): 310 Maximum current (A): 620 Maximum speed (r/min): 12000 Outer diameter of stator (mm): 240 Application Cases The product has been applied to projects of FAW, Changan, Hezhong, GAC, and SAIC General Motors.
|
|

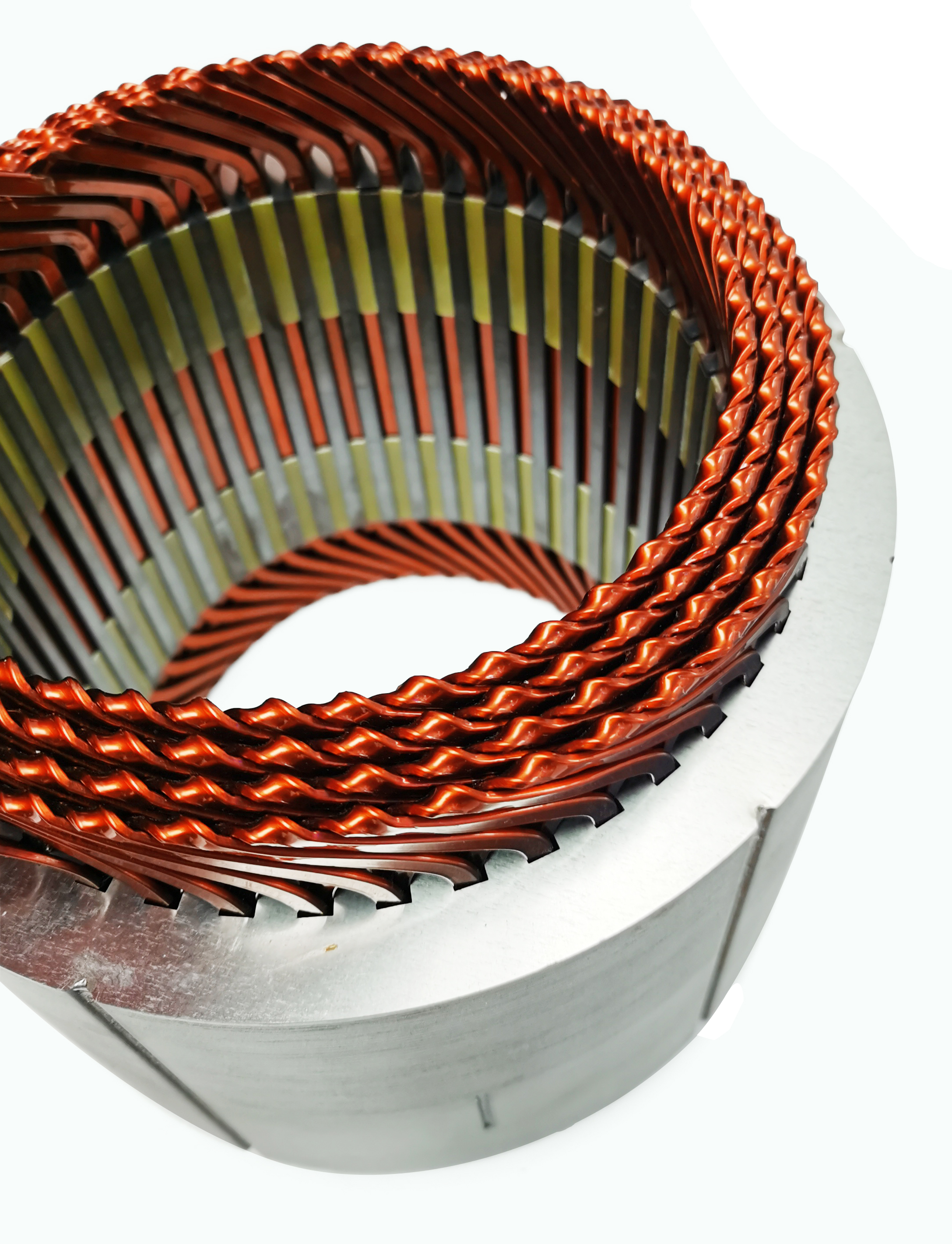

Flat Wire Water-Cooled Motor tDriver-MD3042
Brief Introduction/Functions Suitable for high-temperature environment and variable frequency speed control system. It has characteristics of wide speed regulation range, stable operation, high reliability, high operation efficiency, and novel and beautiful appearance design. Product Parameters/Key Technologies tDriver-MD3042 motor: DC bus voltage (V): 240-441 Peak power (kW): 200@30s Peak torque (N.m): 400@30s Maximum working speed (rpm): 16000 Maximum efficiency: 97% Maximum working current: 670 ArmsOuter diameter of stator (mm): 220 Application Cases The product has been applied to projects of FAW, Changan, Hezhong, GAC, and SAIC General Motors. |
|
Flat Wire Oil-Cooled Motor tDriver-MD3030
Brief Introduction/Functions High power density and high torque density Product Parameters/Key Technologies tDriver-MD3030 motor: Bus voltage (DCV): 240~450 Peak power (kW): 240 Peak torque (Nm): 420 Maximum current (A): 690 Maximum speed (r/min): 16000 Outer diameter of stator (mm): 220 Application Cases The product has been applied to projects of FAW, Changan, Hezhong, GAC, and SAIC General Motors. |
|
